Electro-Hydraulic Universal Surgical Hand Table With X-Ray Transparent , Hip Surgery Table

Electro-Hydraulic Universal Surgical Hand Table With X-Ray Transparent , Hip Surgery Table

    • Electro-Hydraulic Universal Surgical Hand Table With X-Ray Transparent , Hip Surgery Table
    • Electro-Hydraulic Universal Surgical Hand Table With X-Ray Transparent , Hip Surgery Table
    • Electro-Hydraulic Universal Surgical Hand Table With X-Ray Transparent , Hip Surgery Table
  • Electro-Hydraulic Universal Surgical Hand Table With X-Ray Transparent , Hip Surgery Table

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: MEDIK
    Certification: CE, ISO13485
    Model Number: YA-XD2D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: To be confirmed according to your order
    Packaging Details: Exportation standard carton or wooden case
    Delivery Time: 15-30 days
    Payment Terms: T/T, L/C, West Union
    Supply Ability: 500 units per month
    Contact Now
    Detailed Product Description
    Name: Electro-Hydraulic Universal Surgical Hand Table Overall Size: 2150*500*750-1000mm
    Trendelenburg: 25° Feature: X-Ray Transparent
    Structure: Stainless Steel Bottom Base Loading Capacity: 180kgs
    High Light:

    electric operating table

    ,

    hydraulic operating table

    Electro-Hydraulic Universal Operating Table With x-Ray Transparent

    Specification:

    Model YA-XD2D
    Overall size (L*W*H) 2150*500*750-1000mm
    Trendelenburg 25°
    Reverse 25°
    Lateral tilt (left/right) 20° / 20°
    Head section +30° to -90°
    Back section +45° to -15°
    Leg section 0 to -90°
    Spread angle of leg plates 90°
    Kidney Elevator height adjustment 4.5” (110mm)
    Patient weight capacity 180kg
    Table Shipping Weight 616 lbs. (280 kg)



    Key features:

    • Contours to virtually all patient postures with a five-section tabletop
    • Accommodates virtually all patients with generous height ranges
    • Provides a longitudinal slide of 15.8” for C-arm, permitting high quality images crucial to cardiothoracic, neurosurgical and orthopedic procedures
    • Wire controller for different movements and Column control panel with locking function for movements
    • The back rest segment, head rest segment and one-piece leg rest segment adjustment is manually performed by locking gas springs
    • Divided, two parts leg rest segments are adjusted by means of gear transmission
    • The antistatic, seamless mattresses are removable from the segments of the table top and resistant to disinfecting agents
    • Integrated battery charger Yes
    • Kidney Elevator height adjustment 4.5” (110mm)



    Catalogue download: Electric Operating Table YA-XD2D.pdf



    Product pictures:

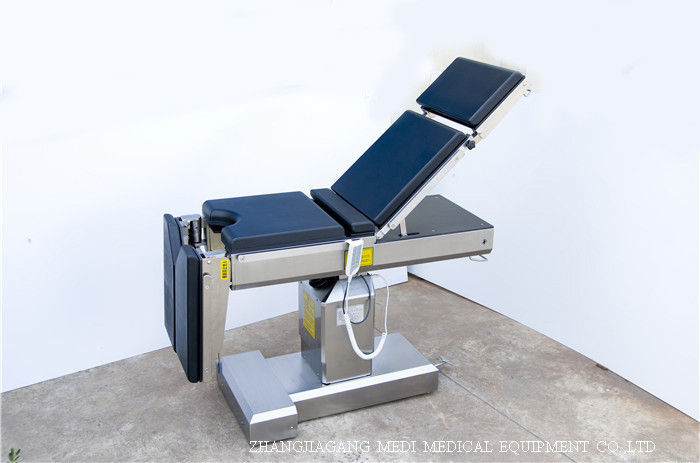

    Electro-Hydraulic Universal Surgical Hand Table With X-Ray Transparent , Hip Surgery Table 0

    Electro-Hydraulic Universal Surgical Hand Table With X-Ray Transparent , Hip Surgery Table 1

    Electro-Hydraulic Universal Surgical Hand Table With X-Ray Transparent , Hip Surgery Table 2

    Electro-Hydraulic Universal Surgical Hand Table With X-Ray Transparent , Hip Surgery Table 3
