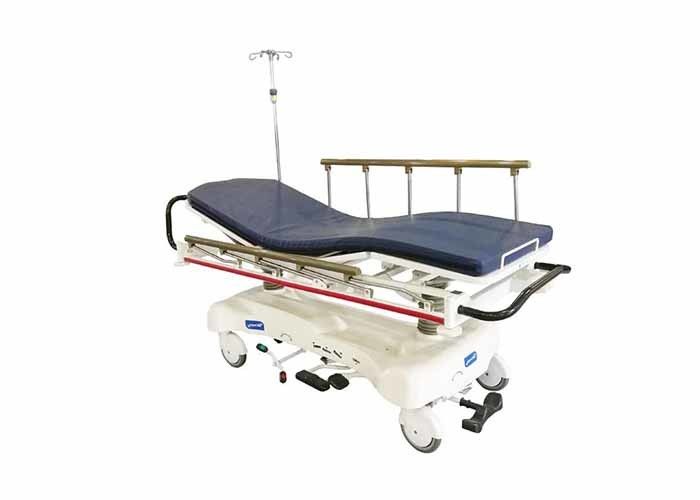

Hydraulic Patient Transfer Trolley Radio Translucent Platform For X-ray Examination

Hydraulic Patient Transfer Trolley Radio Translucent Platform For X-ray Examination

    • Hydraulic Patient Transfer Trolley  Radio Translucent Platform For X-ray Examination
    • Hydraulic Patient Transfer Trolley  Radio Translucent Platform For X-ray Examination
    • Hydraulic Patient Transfer Trolley  Radio Translucent Platform For X-ray Examination
    • Hydraulic Patient Transfer Trolley  Radio Translucent Platform For X-ray Examination
    • Hydraulic Patient Transfer Trolley  Radio Translucent Platform For X-ray Examination
    • Hydraulic Patient Transfer Trolley  Radio Translucent Platform For X-ray Examination
  • Hydraulic Patient Transfer Trolley  Radio Translucent Platform For X-ray Examination

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: MEDIK
    Certification: CE, ISO13485
    Model Number: YA-111B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: To be confirmed according to your order
    Packaging Details: Exportation standard carton or wooden case
    Delivery Time: 15-30 days
    Payment Terms: T/T, L/C, West Union
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    Application: Hospital | Ward | ICU Apply Crowd: Patient
    Feature: X-ray Function Size: 2120*800*630-930mm
    Load Capacity: 235kg Function: Back Section Adjustable,Knee Section Adjustable, High-low, Trendelenburg ,Reverse Trendelenburg



    Hydraulic Patient Transfer Trolley Radio Translucent Platform For X-ray Examination



    Introduction:



    1. The international advanced centrally controlled brake system is applied to the cart and 200

     dustproof castors make the cart move steadily, reliably and lightly.

    2. The hydraulic stretcher can be raised and lowered, tilted forward and backward to meet the

     requirements of the medical personnel.

    3. The patient transfer stretcher surface is of separate structure with the back rest section

    supported by the imported pneumatic spring. Thus the cart is operated easily and simply.



    Technical parameters:



    Item

    Hydraulic Patient Transfer Trolley With Radio Translucent Platform

    For X-ray Examination

    Model

    YA-111B

    Technical Parameters(3-Functions)

    Overall size (L*W*H)

    2120*800*630-930mm

    Backrest max upward angle

    85°±5°

    Leg section max upward angle

    35°±5°

    Trendelenburg and Reverse-trendelenburg angle

    15°±2°

    Height adjustable

    630-930mm

    Silent wheels with central locking system

    Dia 200mm(8”)

    Loading capacity

    235kgs

    Aluminum alloy side rails

    2pcs, collapsible

    Packing

    Carton or wooden case

    Side rails

    2 pcs, Aluminum alloy material,

    anti-bacteria

    I. V pole

    1 pc

    I. V pole sockets

    4 pcs

    Wheels

    4 pcs

    Drainage Hook

    2 pcs

    Steer castor for direction

    1 pc

    Mattress surface board

    1 set

    Gas spring

    1 pc

    Imported hydraulic pump

    2 pcs(POWER-PACKER)

    Crank

    1 pc

    Manoeuvrable handle

    1 set

    Foot pedals

    2 sets at both sides of trolley



    Watch video :https://youtu.be/kgt6ao1vg-o

    Hydraulic Patient Transfer Trolley  Radio Translucent Platform For X-ray Examination



    Product show:



    Hydraulic Patient Transfer Trolley  Radio Translucent Platform For X-ray Examination
