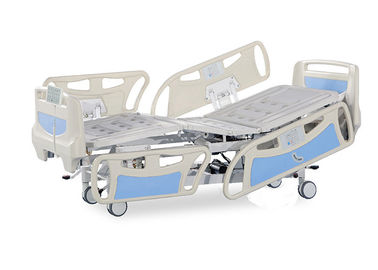

Automatic Hospital ICU Bed With Extensive Foot Section And Central Controller Panel

Automatic Hospital ICU Bed With Extensive Foot Section And Central Controller Panel

    • Automatic Hospital ICU Bed With Extensive Foot Section And Central Controller Panel
    • Automatic Hospital ICU Bed With Extensive Foot Section And Central Controller Panel
  • Automatic Hospital ICU Bed With Extensive Foot Section And Central Controller Panel

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: MEDIK
    Certification: CE, ISO13485
    Model Number: YA-D006-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: To be confirmed according to your order
    Packaging Details: Exportation standard carton or wooden case
    Delivery Time: 15-30 days
    Payment Terms: T/T, L/C, West Union
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    Application: Hospital|ICU|Ward Apply Crowd: Patient
    Feature: Extensive Foot Section For Patient Structure: ABS Head And Foot Board
    Function: 6 Function

    Automatic Hospital ICU Bed With Extensive Foot Section Central Controller Panel

    Quick detail:


    product

     Automatic Hospital ICU Bed

    Brand Name

       MEDIK


    Overall size

    (L*W*H):2310*980*530mm


    Weight load

       ≤250kg

    motor

    LINAK

    Certificate

    CE, ISO


    Description:

    1. This is a multi-function Electric Hospital Bed, the position of the backrest /knee part/ high&low/
    trendelenburg/ reverse trendelenburg,also the vascular position
    2. Pneumatic spring to make the hi-low adjustment more easy and stable.
    3. High quality ABS engineering plastic detachable head/foot boards.Foot board hanging with one
    handset controller
    4. Side rails: 4pcs, ABS material, collapsible, 2 of them with control inner constructed, both of them
     with angle indicator for back section and trendelenburg(Reverse-trendelenburg) movements
    5. The bed platform is shaped once for all by cold rolled steel plate, which is durable and reliable,
    Epoxy coated the platform easy to disinfect and clean.
    6. Central controller 5' silent caster enable the bed move stable and leave no mark on floor.

    Specification:


    Specification:

    Overall size

    2160-2310*980*530-800mm

    Bed Frame

    made of cold-rolled steel plate, treated by
    electro-coating and powder-coating

    Headboard/footboard

    ABS

    Bedboards

    Steel 4-part

    Handrails

     ABS handrails

    Motor

    Quiet and robust electric actuators provide
     reliable operation

    Build-in control of all electrically operated
     functions and movements

    4 Linak motors from Denmark

    nurse operators

    handing in footboard

    CPR Handles

    on both sides

    Wheels

    Four silent wheels with central-controlled
     braking system, φ125mm

    Weight load

    Fully tested sturdy construction capable of
    taking a maximum user weight of  235kg

    Patient scaling and patient leaving bed alarm system

    Optional

    6-function:

    Backrest max upward angle

    75°

    Footrest max upward angle

    40°

    Height adjustment

    530-800mm

    Trendelenburg

    12°

    Anti-trendelenburg

    12°

    Extensive foot section

    By 15cm

    StandardAccessories

    Headboard/Footboard

    1set

    Side Rails

    1set

    Bed Frame

    1 set

    Bedboard

    1 set

    Wheels

    1 set

    Bumper castors

    4 pieces

    Angle indicator

    2 piece

    Patient Name Card

    1 piece

    IV Pole Holder

    4 pieces

    IV pole

    1 piece

    drainage bag holders

    2 pieces


    Advantage of us
    1,  high quality and competitive price
    2,  special in electric hospital bed products
    3,  fast deliver
    4,  more than 15  years export  experience
    5, Near Shanghai Port, the traffic is very convenient.

    Accessories:

    Automatic Hospital ICU Bed With Extensive Foot Section And Central Controller Panel
