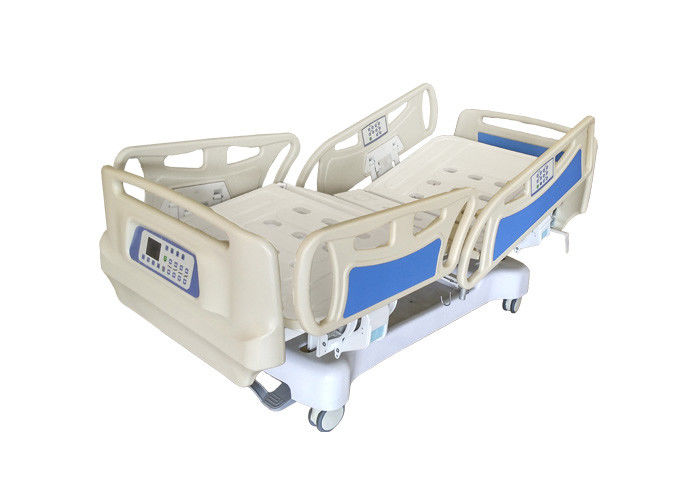

Patient Hospital ICU Bed For Home Use , ABS Head And Foot Board

Patient Hospital ICU Bed For Home Use , ABS Head And Foot Board

  • High Light

    icu hospital bed

    ,

    electric icu bed

  • Name
    Patient Hospital ICU Bed For Home Use
  • Overall Size
    2230*1050*520-760mm
  • Wheels
    Dia 125mm(5”)
  • Function
    5-Function
  • Structure
    ABS Head And Foot Board
  • Loading Capacity
    235kgs
  • Place of Origin
    Zhangjiagang, China
  • Brand Name
    MEDIK
  • Certification
    CE, ISO13485
  • Model Number
    YA-D6-2(Column style)
  • Minimum Order Quantity
    1 unit
  • Price
    To be confirmed according to your order
  • Packaging Details
    Exportation standard carton or wooden case
  • Delivery Time
    15-30 days
  • Payment Terms
    T/T, L/C, West Union
  • Supply Ability
    1000 units per month

Patient Hospital ICU Bed For Home Use , ABS Head And Foot Board

Patient Hospital ICU Bed For Home Use , ABS Head And Foot Board



Specification:

Item Multi-function electric ICU bed
Model YA-D6-2(Column style)
Overall size (L*W*H) 2230*1050*520-760mm
Backrest max upward angle 75°±5°
Footrest max upward angle 40°±5°
Height adjustable 520-760mm
Trendelenburg 0-12°±2°
Reverse-Trendelenburg 0-12°±2°
Silent wheels with central locking system Dia 125mm(5”)
Loading capacity 235kgs



Key features:

  • ICU bed with full-length side rails for protection
  • Anti-rust treated electric CCU bed
  • With double column structure for vertical HI-LO movement
  • Central braking system for all wheels
  • With CPR function in case of emergency use
  • With patient scaling system(Optional)
  • With foot section extensive(Optional)
  • Mattress surface: 4pcs divided enameled steel sections
  • Head&Foot board: ABS, detachable, foot board with control inner constructed
  • With 4 bumper castors at the 4 corners of bed
  • With double-column structure for vertical HI-LO movement
  • Side rails: 4pcs, ABS material, collapsible,
  • Four 125mm(150mm) castors with bow-type central braking system
  • Control on the rails for movements of back section, leg section, HI-LO, Trendelenburg and Reverse-Trendelenburg, also the vascular position
  • Control on foot board for movements of back section, leg section, HI-LO, Trendelenburg and Reverse-Trendelenburg, also the block buttons for movements of HI-LO, back section, leg section
  • With lever handles on both sides for CPR quick release
  • With foot section extensive by manual control for different patients(Optional)
  • With patient scaling system and patient leaving bed alarm system(Optional)
  • I.V. drip pole and drainage hooks available

Standard Accessories

  • Headboard/Footboard 1 pair, foot board with control inner contructed
  • X-ray cassette holder under back section Optional
  • Side rails 4 pcs, ABS material, anti-bacteria
  • Patient scaling and patient leaving bed alarm system Optional
  • I. V pole 1 pc
  • I. V pole sockets 4 pcs (at least)
  • Wheels 4 pcs
  • Direction wheel Optional
  • Bumper castors 4 pcs
  • Drainage Hook 2 pcs
  • Bed board 1 set
  • Motors 4 units
