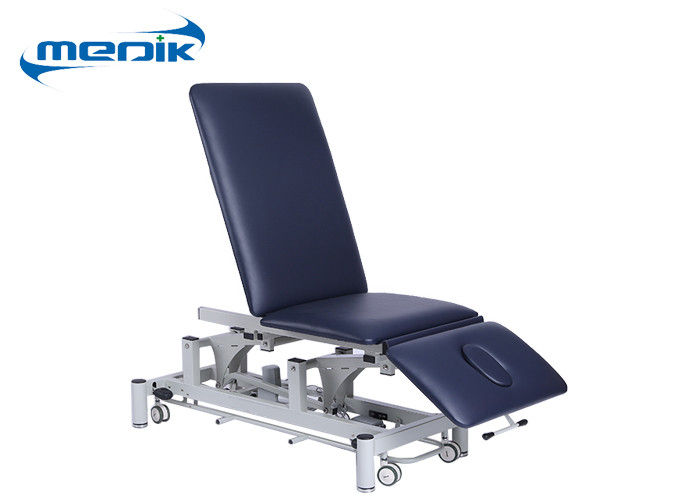

3 Sections Electric Medical Physician Exam Tables With Foot Switch For Clinic

3 Sections Electric Medical Physician Exam Tables With Foot Switch For Clinic

    • 3 Sections Electric Medical Physician Exam Tables With Foot Switch For Clinic
    • 3 Sections Electric Medical Physician Exam Tables With Foot Switch For Clinic
    • 3 Sections Electric Medical Physician Exam Tables With Foot Switch For Clinic
    • 3 Sections Electric Medical Physician Exam Tables With Foot Switch For Clinic
  • 3 Sections Electric Medical Physician Exam Tables With Foot Switch For Clinic

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: MEDIK
    Certification: CE, ISO13485
    Model Number: YA-ET302D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: To be confirmed according to your order
    Packaging Details: Exportation standard carton or wooden case
    Delivery Time: 15-30 days
    Payment Terms: T/T, L/C, West Union
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    Application: Hospital / Clinic Load Capacity: 225kg
    Size: 195 X 66 X (47.5-93)cm Head Section Adjustable: -45° To +40°
    Back Section: 0° To +80° Height Adjustable: 47.5cm – 93cm

    3 Sections Electric Medical Physician Exam Tables With Foot Switch For Clinic



    Description:

    Electric medical table has a very strong table designed to withstand constant heavy use with minimal maintenance.

    This Electric medical table addresses the requirements of a wide range of manual handling issues to benefit both patient and doctor.



    Specification:



    Dimensions
    Overall size 195 x 66 x (47.5-93)cm
    Backrest Length 93cm
    Middle Section Length 54cm
    Head Section Length 40cm
    Load capacity 225kg
    Foam Thickness 5cm
    Foam Density 36g/m2
    Packing 186 x 72 x 56cm (Heavy carton)
    N.W./G.W. 70/83kgs
    20GP/40GP 36/72pcs
    Function
    Adjustable Height 47.5cm – 93cm
    Head section adjustable -45° to +40°
    Back section adjustable 0° to +80°



    Standard Specification:

    1. One electric motor, standard supports "Timotion" brand for Hi-Lo function.

    2. Height adjustable from 47.5cm to 93cm by footbar system.

    3. The frame feet (*4) make round shape, avoid to hit people.

    4. Add more material ad better designed for some frame parts.

    5. Adjustable head section featuring single gas strut, angle adjustable from -45° to +40°.

    6. Adjustable backrest featuring double gas struts, angle adjustable from +0° to +80°.

    7. Electric medical table able to lift up to 225kg working weight from its lowest height.

    8. Retractable castors 75mm for excellent mobility and safety.

    9. Fire/stain/mildew/oil/water/wear resistant Med PVC available in 9 kinds of colors.



    Standard Options:

    1. Electric medical table Foot Switch is available

    2. Hand switch is free to transfer

    3. Paper roll holder is unavailable

    4. Extra width upholstery up to 70cm or 62cm.

    5. Extra 2cm foam thickness for upholstery.

    6. Contact us free for more available optional.



    Details:

    3 Sections Electric Medical Physician Exam Tables With Foot Switch For Clinic

    3 Sections Electric Medical Physician Exam Tables With Foot Switch For Clinic

     Size Picture:

    3 Sections Electric Medical Physician Exam Tables With Foot Switch For Clinic
