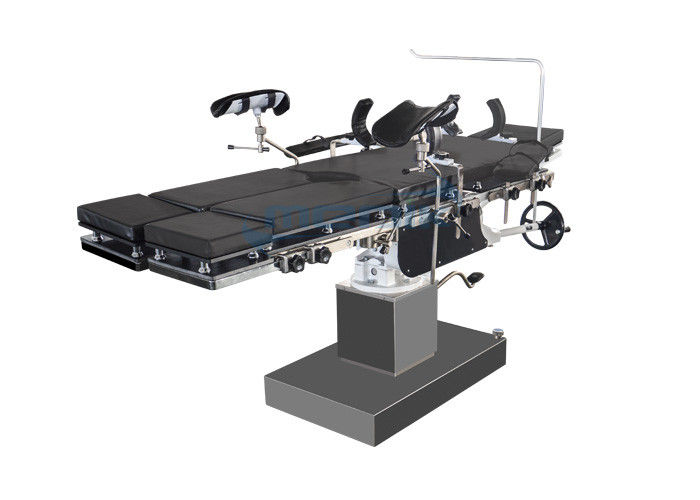

Universal surgery table and mechanical operating table
Watch Video
Specification:
Model |
YA-3008AB |
Overall size (L*W*H) |
2040*480*740-940mm |
Trendelenburg / Reverse |
25°/ 30° |
Lateral Tilt (left/right) |
20° / 20° |
Head Section |
+30° to -90° |
Back Section |
+80° to -10° |
Leg Section |
Downward to 90° and Outward to 90° |
Patient Weight Capacity |
180Kgs |
Kidney Elevator |
4.5” (110mm) |
Key features:
- Mechanical operating table with dual-deck radiolucent tops for x-ray film cassette insertion
- Up and Down positioning of this universal surgery table is accessed by foot pedal operated hydraulic pump
- Operating table top is divided into 5 sections providing numerous positions
- Detachable head section and detachable leg sections provide versatility
- Trendelenburg, Reverse-trendelenburg and Lateral tilt positions are obtained by cranks situated under
- the back section
- Integrated kidney elevator on the side of operating table
Packed Weights And Dimensions For Shipment:
- Net weight: 230kgs
- Shipping weight: 290kgs
- Shipping dimension(L*W*H): 141*76*144cm
