Low Noise Electric Linear Actuator Stroke Length 100~400 mm For Hospital Bed

Low Noise Electric Linear Actuator Stroke Length 100~400 mm For Hospital Bed

  • High Light

    hospital bed parts

    ,

    hospital bed attachments

  • Application
    Medical Equipment
  • Standard Stroke
    100~400mm(option>400)
  • Protection Class
    IP43
  • Feature
    Can Be Mounted With Power Adapter
  • Mounting Position
    H Or V Type
  • Standard/Certificate
    CE/UL60601-1
  • Place of Origin
    Zhangjiagang, China
  • Brand Name
    MEDIK
  • Certification
    CE, ISO13485
  • Model Number
    YA-JC35D
  • Minimum Order Quantity
    10 sets
  • Price
    To be confirmed according to your order
  • Packaging Details
    Exportation standard carton or wooden case
  • Delivery Time
    15-30 days
  • Payment Terms
    T/T, L/C, West Union
  • Supply Ability
    1000 units per month

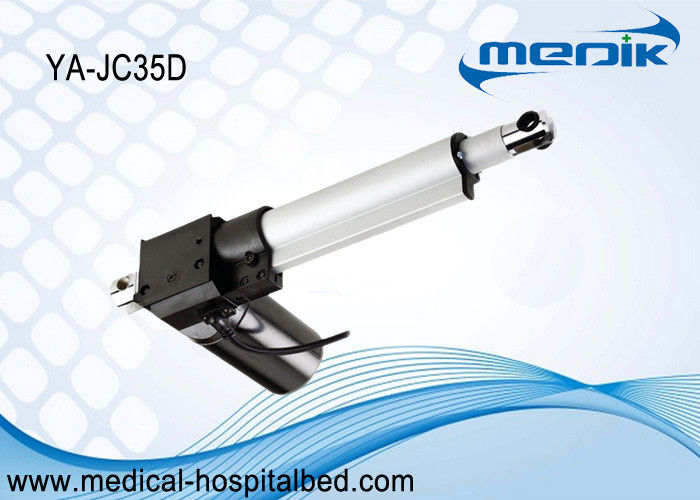

Low Noise Electric Linear Actuator Stroke Length 100~400 mm For Hospital Bed

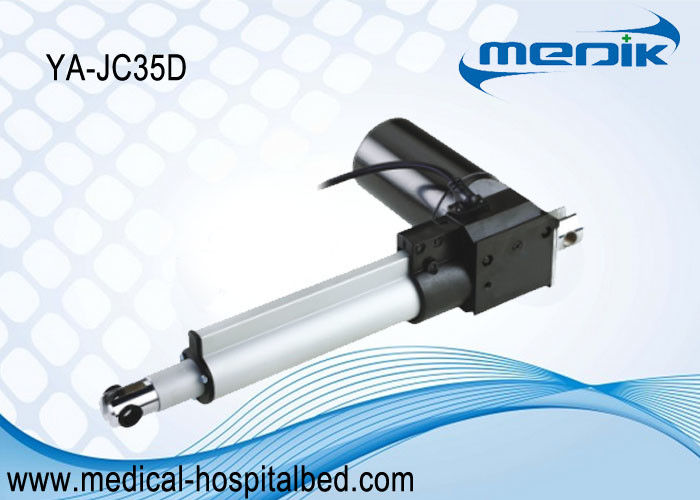

Low Noise Electric Linear Actuator Stroke Length 100~400 mm For Hospital Bed



Quick detail:



1. Widely used for hospital bed, recliner chair, massage sofa

2. Small dimension,

3. Low noise,

4. Low cost.

5. Can be mounted with power adapter



Introduction:



MEDIK electric actuators are used in many different industries, making both work and private life easier

for a lot of people. MEDIK provides electric actuator solutions to hospital & health care equipment,

height adjustable furniture, comfort beds, industrial work applications and switch gear automation.

Specifications

Model YA-JC35D
Load capacity push(N) 6000 4000 3000 2000 750
Load capacity pull(N) 6000 4000 3000 2000 750
Static capacity push(N) 6000 4000 3000 2000 750
Static capacity pull(N) 6000 4000 3000 2000 750
Speed at full load(24v )mm/s 3 4 8 12 22
Speed at full load(12v )mm/s 2.6 3.5 5 9 18
Stroke Length(mm) 100~400(option>400)
Mounting position H or V type
Color Black or grey
Limit Switch Built-in
Overload protection Integrated in appropriate control box
Duty cycle 10%,max 2 min.continuous operation
Inner tube Aluminum tube
End clevis Aluminum alloy(steel or plastic is option according the application)
Top clevis Aluminum alloy(steel is option according the application)
IP grade IP43
Operation temperature +5°C ~ +40°C
Standard/Certificate CE/UL60601-1



Our advantages

  1. Special in electric linear actuator
  2. Fast deliver
  3. More than 15 years export experience
  4. We have the most convenient transport and prompt delivery.
  5. We have high technical production line with top quality products.
