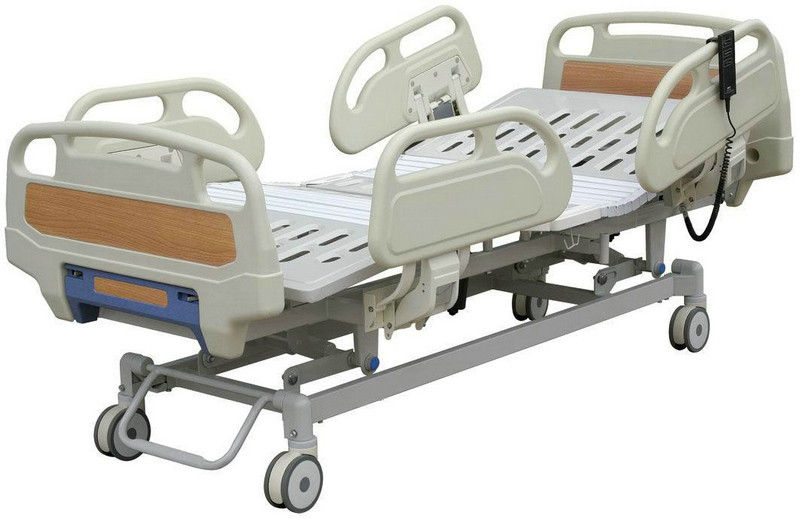

Multi Purpose Hospital Icu Bed Manual CPR 150mm Electric

Multi Purpose Hospital Icu Bed Manual CPR 150mm Electric

  • High Light

    Multi Purpose Electric Hospital Icu Bed


    150mm Hospital Icu Bed


    Manual CPR Hospital Icu Bed

  • Name
    Multi-purpose Electric Critical Care Hospital ICU Bed
  • Overall Size
    2175*990 *420-800mm
  • Castor
  • Function
    Six Function
  • CPR Function
    Electric CPR And Manual CPR
  • Loading Capacity
  • Place of Origin
    Zhangjiagang, China
  • Brand Name
  • Certification
    CE, ISO13485
  • Model Number
  • Minimum Order Quantity
    1 unit
  • Price
    To be confirmed according to your order
  • Packaging Details
    Exportation standard carton or wooden case
  • Delivery Time
    15-30 days
  • Payment Terms
    T/T, L/C, West Union
  • Supply Ability
    1000 units per month

Multi Purpose Hospital Icu Bed Manual CPR 150mm Electric

Hospital Icu Bed Five Function Electric Bed multiple Functions



1. Bed frame and mattress base are made of powder coated steel. Four roof sections are perforated evenly and should be properly mounted on the main frame. The bed frame is sturdy and stable, supporting at least 250 kilograms.

2. The bed surface adopts 1.2 mm cold rolled steel plate integral stamping process, the bed body adopts square steel welding, the surface adopts plastic spraying treatment, anti-rust, anti-corrosion, stable and durable as a whole.

3. The head/end of the bed adopts ABS injection molding technology, anti-aging and antibacterial. Head board and footboard adopt automatic locking device. In case of emergency, it is convenient to disassemble rescue, special care and safe transport of patients. Head and tail board all have grasp handle that designs by human body engineering principle, facilitate carry out.

4. All electric control, and indicators show the working status. The use of easy to operate touch switch, to solve the mechanical keyboard service life is limited, keys due to continuous operation and failure.

5. The electric remote control provides the following functions: 1. Backrest elevation 2. High and low elevation 4. Trendelenburg position 5. Reverse Trendelenburg position. 6. One-touch CPR button for quick recovery.

6. - Four ABS guardrails on the side are equipped with Angle indicators, through which nursing staff can monitor the patient's head Angle.



Weighing scale

Bed exit alarm

Night light

X-ray translucent back section

Steering wheel


Technical parameter

Overall size 2175*990 *420-800mm
Bed length extension 145mm
Lying size 1960*900 mm
Back section up/down 0-75°
Foot section up/down 0-45°
Height adjustment 420-800mm
Trendelenburg 0-16°
Revere- Trendelenburg 0-16°
Safe loading capacity 230kg
