High Light
electric operating table
,hydraulic operating table
-
Power SourceHydraulic Oil Pump
-
HI-LOW(750-950)±50mm
-
Width500±20mm
-
Overall Length2100±50mm
-
Shoulder Support1 Pair
-
Armrests1 Pair
-
Place of OriginChina
-
Brand Namemedik
-
CertificationCE/ISO
-
Model NumberYA-3002
-
Minimum Order Quantity50pcs
-
Pricenegotiation
-
Packaging DetailsPacked in carton firstly,and then reinforced with wooden case for outer packing
-
Delivery Time10 working days after received your payment
-
Payment TermsT/T or western Union
-
Supply Ability3,000pcs per month

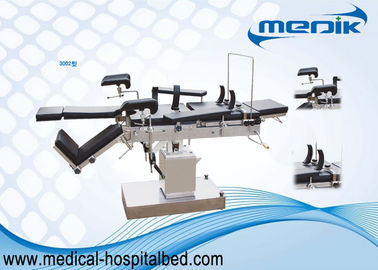

Hydraulic Operating Table
Hydraulic Operating Table
Quick details:
|
Functions: |
|
1.HI-LOW:(750-950)±50mm |
|
2.Head board fold upward≥30°and fold downward≥90° |
|
3.Back board fold upward≥60°and fold downward≥20° |
|
4.Leg board fold downward≥90° |
|
5.Trendelenburg≥15°and Reverse-Trendelenburg≥15° |
|
6.Left and Right lateral tilting angle≥15° |
|
7.Head and leg section exchange to make complete examination in C-arm, X-ray photography |
Description:
This table is suitable for surgical procedures of the head ,neck, thorax,abdomen, perineumand
extremities as well as for gynecological,oto-rhino-laryngological and orthopedics operations.
The table’s elevation.lowering,reversed trendelenburg
,trendelenburg,lateral tilt can be all automatically controlled. Leg section cam be rotated,opened,
disassembled and adjusted easily. It is most suitable for the urological operation. The table top
made of high-strength synthetic panels,can move backwards and forwards,X-ray examination can be carried out on it . It can be raised or lowered hydraulically by means of
an oil pump. Various positions can be controlled from both sides. Chassis inside and outside
cover are stainless steel. Loading capacity is 180kgs.
Technical parameters:
|
Main specification |
|
|
Overall length |
2100±50mm |
|
Width |
500±20mm |
|
Max height |
950mm |
|
Min height |
750mm |
|
Adjust |
>=200mm |
Standard accessories:
|
Standard accessories |
|
1 pair shoulder support |
|
1 pair armrests |
|
1 pair waist support frame |
|
1 pair leg support holder |
|
1 pc anesthesia screen frame |
|
Hydraulic oil pump for elevation |
Watch video ( https://youtu.be/WHin-FJGdKo ):
