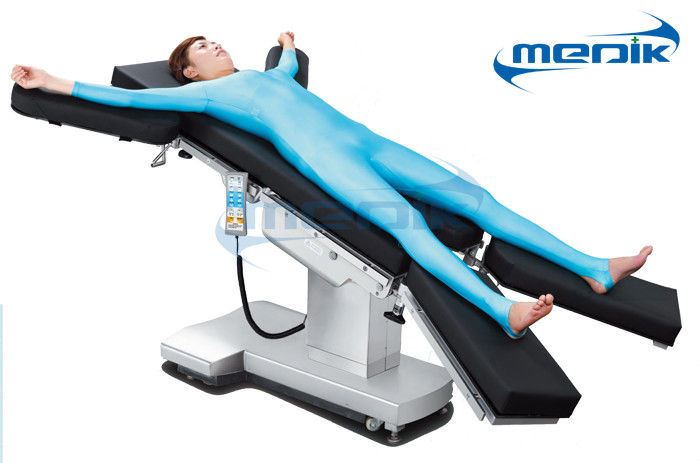

Electro Hydraulic Surgical Operating Table Suitable For C -Arm And X-Ray

Electro Hydraulic Surgical Operating Table Suitable For C -Arm And X-Ray

  • High Light

    electric operating table


    hydraulic operating table

  • Name
    Electro Hydraulic Surgical Operating Table
  • Overall Size
  • Mattress
    Memory Pad With Antistatic, Waterproof Design
  • Maximum Safe Load
  • Material
    AISI304 Stainless Steel Structure And Chassis
  • Place of Origin
    Zhangjiagang, China
  • Brand Name
  • Certification
    CE, ISO13485
  • Model Number
  • Minimum Order Quantity
    1 unit
  • Price
    To be confirmed according to your order
  • Packaging Details
    Exportation standard carton or wooden case
  • Delivery Time
    15-30 days
  • Payment Terms
    T/T, L/C, West Union
  • Supply Ability
    200 units per month

Electro Hydraulic Surgical Operating Table Suitable For C -Arm And X-Ray

Watch Video



Model YA-07E
Overall size (L*W*H) 1960*500*690-1100mm
Trendelenburg 30°
Anti-tredelenburg 30°
Lateral tilt 18°/18°
Head plate adjustment 40°/90°
Leg plate adjustment up: 15° ,down:90°,outward:90°
Back plate adjustment +90°/-40°
Kidney bridge 110mm
Horizontal sliding 350mm


Key features:

  • With reference to the advantages of congener products from home and abroad,can meet the demands of different positions on operation.
  • 4V battery that meets the operating demands for one week,better ensure the table work under safe voltage.
  • Electromotion facilitates the various adjustment of positions,intellectualized reposition enables the table a quick return to horizontal position. Automatically lockable remote control in case of wrong operation.
  • Large-scale elevation makes it easier for C-arm fluoroscopy examination .
  • With built-in kidney bridge.suits for kidney operation .
  • Optional traction for orthopedics,head rest for Aural surgery,extend functions of the table The cover all adopted premium 304 stainless steel,the main body used cast aluminum,antirust and corrosionthe tabletop adopted phenol aldehyde Photograph board which is suitable for X-Ray.
  • One button reposition function,designed and made specially for X-ray and C-arm use.
  • Key parts,such as electrical pump and electromagnetic valve,adopted imported products from Taiwan.

Standard Accessories

  • Anesthesia screen frame 1 piece
  • Shoulder support 1 pair
  • Body support 1 piece
  • Armrests 1 pair
  • Long fixing clamp 1 pair
  • Waist support frame 1 piece
  • Leg support holder 1 pair
  • Foot support 1 pair
  • Hand remote 1 piece
  • Fixing clamp 8 pieces
