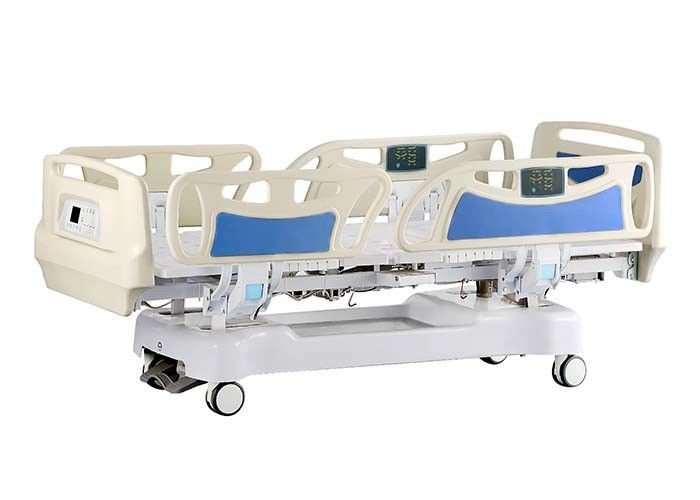

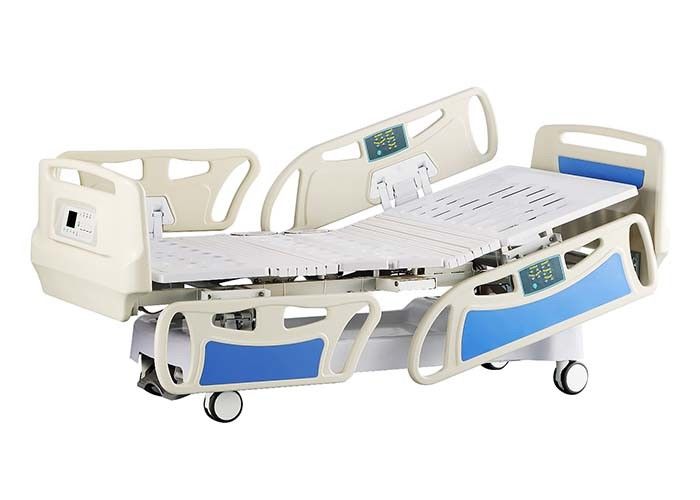

Adjustable Electric Hospital ICU Bed With Touch Screen Controller

Adjustable Electric Hospital ICU Bed With Touch Screen Controller

    • Adjustable Electric Hospital ICU Bed With Touch Screen Controller
    • Adjustable Electric Hospital ICU Bed With Touch Screen Controller
    • Adjustable Electric Hospital ICU Bed With Touch Screen Controller
    • Adjustable Electric Hospital ICU Bed With Touch Screen Controller
    • Adjustable Electric Hospital ICU Bed With Touch Screen Controller
  • Adjustable Electric Hospital ICU Bed With Touch Screen Controller

    Product Details:

    Place of Origin: Zhangjiagang, China
    Brand Name: MEDIK
    Certification: CE, ISO13485
    Model Number: YA-15

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: To be confirmed according to your order
    Packaging Details: Exportation standard carton or wooden case
    Delivery Time: 15-30 days
    Payment Terms: T/T, L/C, West Union
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    Name: Hospital ICU Bed Application: Hospital ICU Room
    Column: 3 Units X-RAY: Available
    CPR Function: YES



    Adjustable Electric Hospital ICU Bed With Touch Screen Controller



    Quick Detail:

    Electric hospital intensive care bed with chair position for patient leaving bed

    1. CE&ISO certified Electric hospital intensive care bed with chair position for patient leaving bed
    2. With control panel inner constructed on side rail
    3. With touch screen controller at the foot board
    4. ICU bed with 4pcs ABS side rails in full length, which can be collapsible below the mattress surface
    5. Anti-rust treated electric intensive care bed
    6. With X-ray translucent mattress surface and x-ray cassete holding tray under the back section
    7. All castors with twin-wheel central braking system
    8. With handles on both sides of beds for CPR function
    9. With one single button control for cardiac chair position
    10. With one single button control for auto-contour position
    11. With one single button for electric CPR function
    12. With one single button for examination position
    13. With electric control for extensive foot section





    Description:

    Electric hospital intensive care bed with chair position for patient leaving bed

    Mattress surface: With radio translucent material for X-ray examination

    Head&Foot board: ABS, detachable, meanwhile head and foot board is plain as CPR board when removable

    With 4 bumper castors at the 4 corners of bed

    Side rails: 4pcs, ABS material, collapsible, 2 of them with control inner constructed, both of them with angle indicator for back section and trendelenburg(Reverse-trendelenburg) movements

    Four 125mm(150mm) castors with twin-wheel central braking system

    With 5th wheel for direction

    Control on the rails for movements of back section, leg section, HI-LO, auto-contour, nursing bell

    One single button for positions on the touch screen control panel: Cardiac chair/Fowler position/CPR position/Examination position/Trendelenburg position/Emergency stop function(at any time and position)/Lateral tilting/HI-LO

    With dual-regress function(more than 200mm)

    With lever handles on both sides for CPR quick release

    With gas spring for shank rest inclination

    With Patient scaling system

    With rechargeable battery for back up when out of electricity power

    I.V. drip pole, drainage hooks, night light available





    Technical parameters:



    Item

    Electric hospital intensive care bed with chair position for patient leaving bed

    Model

    YA-15

    Technical Parameters(5-Functions)

    Overall size (L*W*H)

    2000-2200*1030*510-910mm

    Backrest max upward angle

    75°±5°

    Footrest max upward angle

    40°±5°

    Shank-rest inclination angle(by gas spring)

    40°±5°

    Lateral tilting angle

    25°±5°

    Height adjustable

    510-910mm

    Trendelenburg and Reverse-Trendelenburg



    0-17°±2°

    Foot section extensive length

    2000-2200mm

    Backrest regress distance

    120mm

    Thighrest regress distance

    90mm

    Silent wheels with central locking system

    Dia 150mm(6”)





    Loading capacity

    235kgs

    ABS side rails

    4pcs, collapsible, 2pcs with control inner constructed, and all of them with angle indicators

    Packing

    Carton or wooden case

    Standard Accessories

    Headboard/Footboard

    1 pair, both can be CPR board when removable

    Night light

    1 pc

    X-ray cassette holder under back section

    1 pc(420*650mm)

    Side rails

    4 pcs, ABS material, anti-bacteria

    Patient scaling system

    1 set

    I. V pole

    1 pc

    I. V pole sockets

    4 pcs (at least)

    Wheels

    4 pcs

    Direction wheel

    1 pc

    Bumper castors

    4 pcs

    Drainage Hook

    8 pcs

    Bed board

    1 set

    DC linear Actuators

    2 pcs

    Columns

    3 pcs

    Wireless monitoring system

    1 set(Optional)

    Trapeze bar

    1 pc(Optional)











    Adjustable Electric Hospital ICU Bed With Touch Screen Controller

    Adjustable Electric Hospital ICU Bed With Touch Screen Controller









    Competitive Advantage:



    1. Professional manufacturer and supplier of hospital furniture over 20 years, and most of our products have been awarded with international CE and ISO certificates

    2. Always striving the best to find out solutions for hospital furnishing, for example, ICU room, general patient rooms, operation rooms, examining rooms etc. etc.

    3. Besides our own models, we also provide OEM/ODM service for some well-known brands

    4. We provide 1-2 year warranties and life-time training and after-sales service
